Custom Stamping Steel Winch Hand Brake

Product Introduction

This stamped steel hand brake balances cost-efficiency, reliability, and ease of production, making it an ideal choice for winch applications where simple, durable braking is required.

This product is a simple hand brake used in a winch system. It is made from steel and primarily manufactured through the stamping process. The hand brake is a foundational safety component that ensures controlled operation and helps prevent accidents during winch use. Proper understanding of its function, combined with regular maintenance, is essential for maximizing both safety and equipment longevity.

Component introduction

Brake Handle Assembly

The hand brake consists of two main components: the handle (brake handle) and the brake bands.

The handle is constructed from a flat bar and a U-joint:

• The flat bar is formed by stamping carbon steel flat stock

• The U-joint is also produced via die stamping

• Both components are welded together using a specialized fixture to ensure precise alignment

Brake handle components:

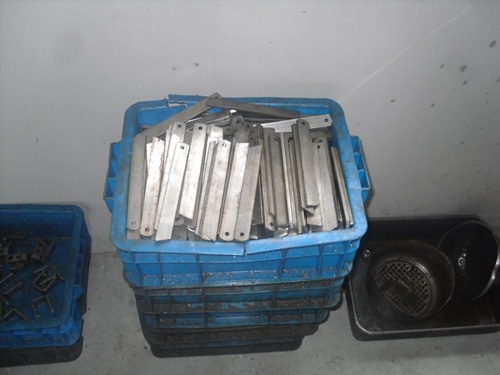

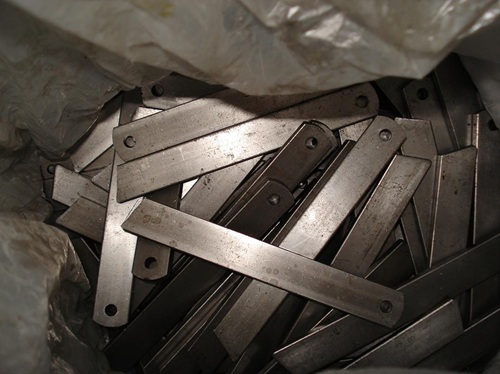

• Handle bar (punched steel flat bar)

• U-joint stamped steel part

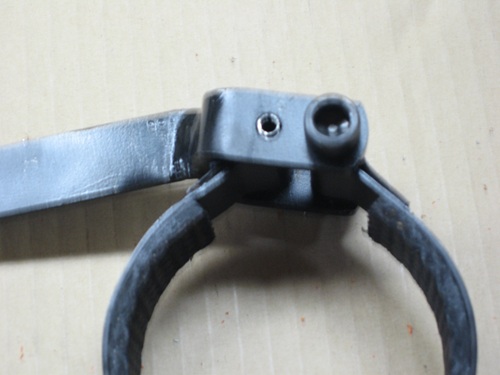

The handles of brake

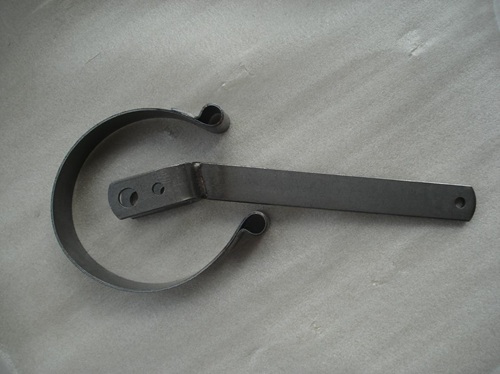

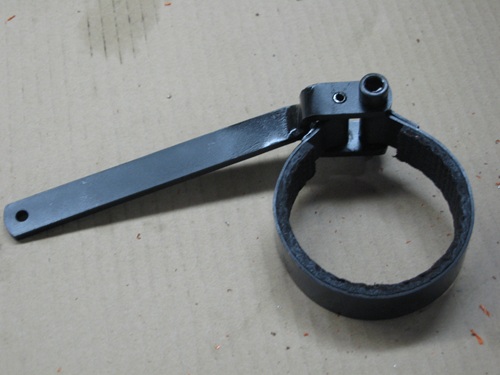

The brake handle as below photos：

The U joint

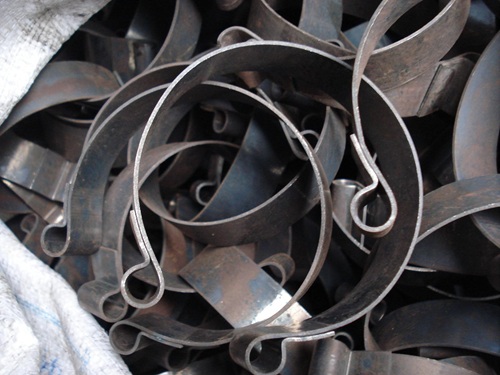

The brake bands

The brake bands are made of 65Mn spring steel and require heat treatment. 65Mn is a medium-carbon manganese steel renowned for its balanced combination of strength, hardness, and elasticity. With a carbon content of 0.62–0.70% and manganese at 0.90–1.20%, this alloy offers superior hardenability compared to plain carbon steels, allowing it to achieve higher tensile strengths (up to 980 MPa) after quenching and tempering.

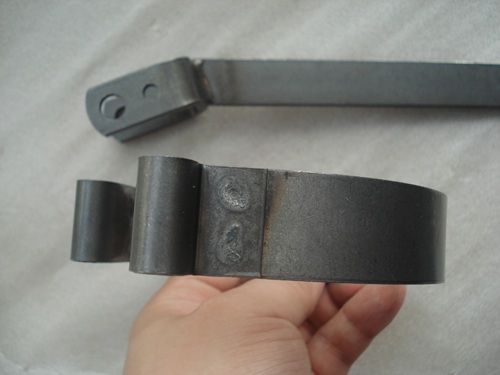

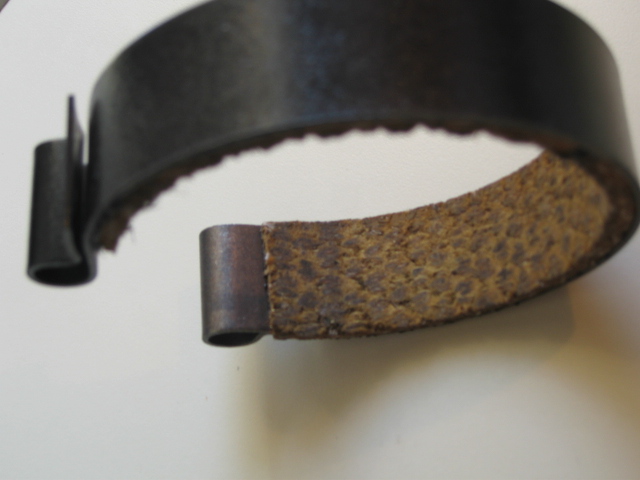

The brake bands are very elastic. Then, using a rolled-up mold, they are shaped into a circle. Both ends are welded using spot welding.

Surface finish

Next the hand brakes need to be blakened to the surface, enhancing corrosion resistance while providing a sleek, uniform finish. For the brake ring, we'll bond a brake pad to it, which creates the necessary friction for braking. This ensures consistent contact with the drum, generating reliable frictional force to halt rotation.

After the work is completed, the two components are combined with a bolt and a spring pin.

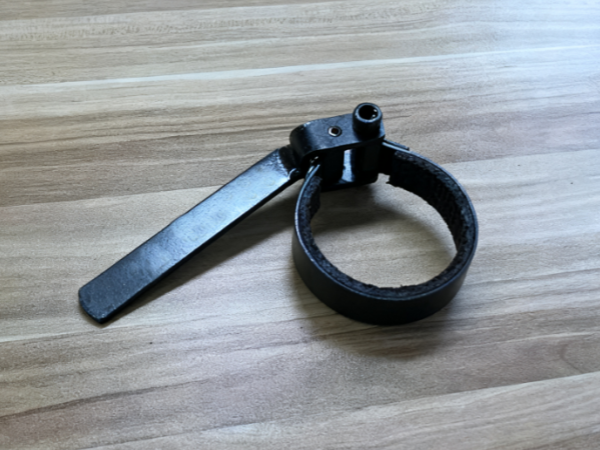

These form a manual brake.

Packing

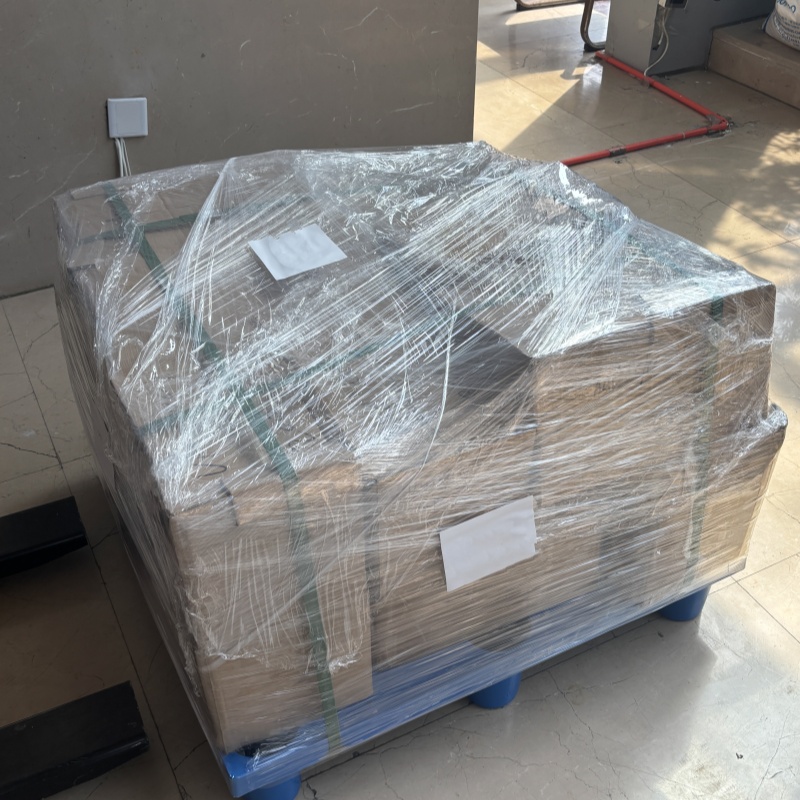

The goods are shipped in bulk by packing them into boxes, placing the boxes on pallets, and securing them with stretch film. This packaging method balances efficiency and protection for medium to heavy loads, suitable for industrial components, machinery parts, or bulk materials.

Ningbo Joyo Metal Products., Ltd. has extensive capabilities across multiple industries and rich experience in customizing metal components. With a proven track record in precision manufacturing, we excel in delivering tailored solutions for diverse sectors.

Conclusion

This Custom Stamping Steel Winch Hand Brake is a cost-effective and reliable mechanical braking solution designed for winch systems. Through a combination of stamping, welding, heat treatment, and surface finishing, the product achieves excellent durability, structural stability, and consistent braking performance.

Its simple yet robust design makes it suitable for industrial applications where safety, reliability, and long service life are essential.
