Custom CNC Machining Stainless Steel M5 Threaded Pipe Adapter

Product Introduction

This project is from a Germany customer, the adapter is little and simple, both edges have holes with a diameter of 1mm, and in the middle is a M5 thread. The material is stainless steel, it's common and used widely. Customized adapter can precisely process according to the pipe diameter, thread specifications and connection methods of the customer's pipeline, ensuring a seamless match between the interface and the pipeline

Material and process

Material introduction

The stainless steel material has high hardness and excellent tensile strength. It can effectively resist corrosion and rust, avoid the risk of pipeline leakage, extend the service life of the entire pipeline, and reduce maintenance and replacement costs.

Drawing analysis

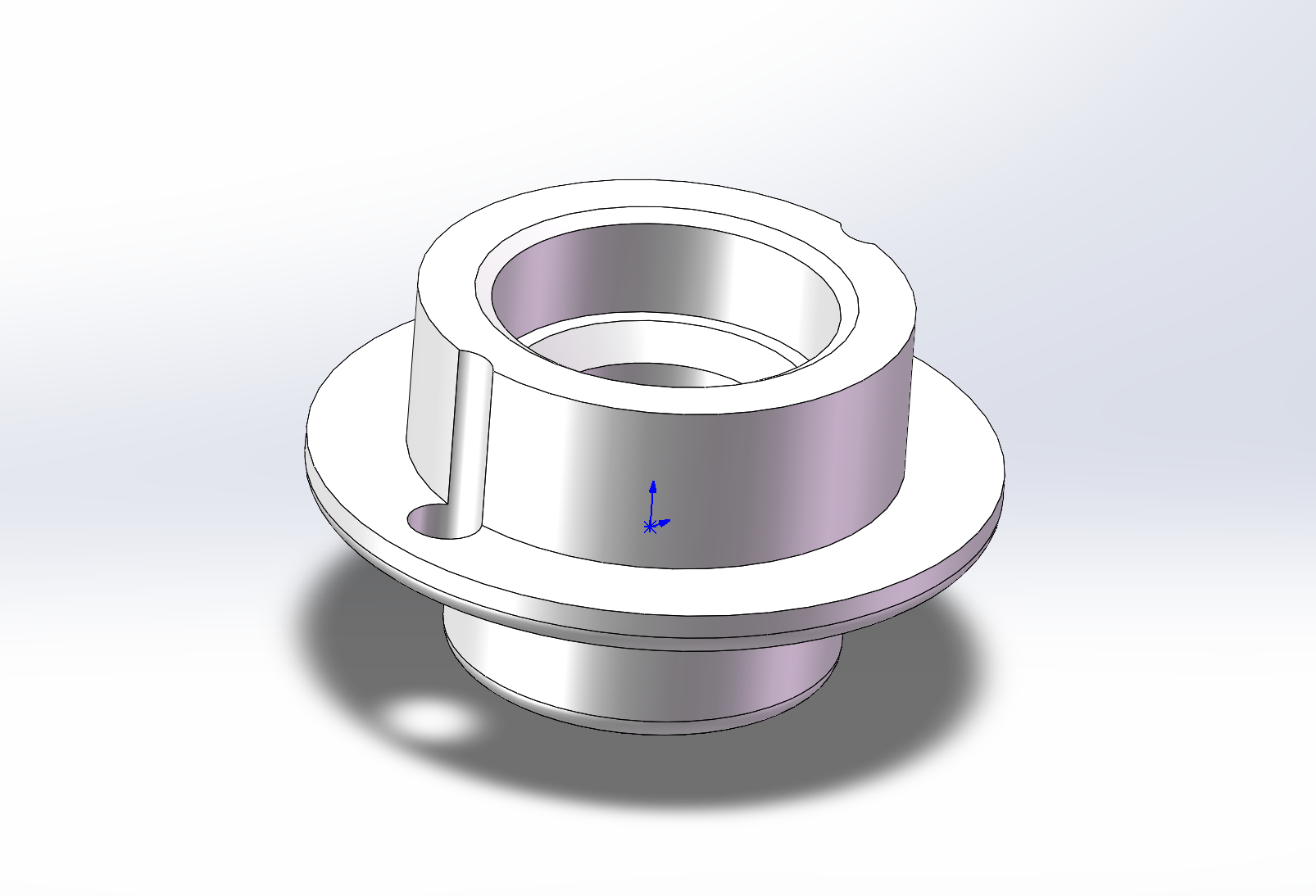

The adapter is made by CNC turning and milling, there are two holes diameter 1.5 mm. Here are the drawings of the custom CNC machining stainless steel adapter, and we made the 3D drawing according to the sketch:

Machining process

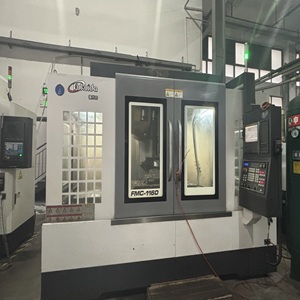

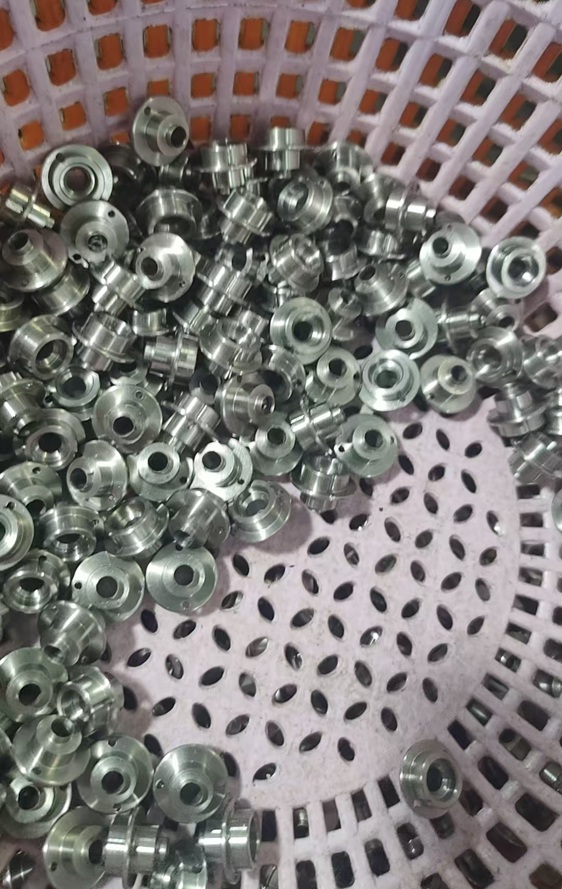

The rods are first cut to the appropriate length, and then holes and steps are machined out. Finally, drill the holes on both sides:

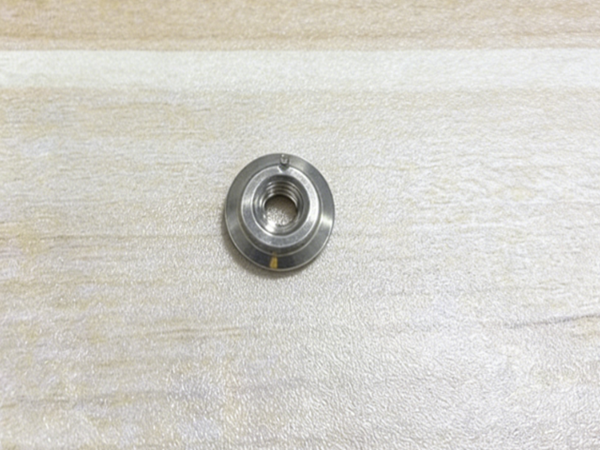

Here is the picture of the finished CNC machining adapter:

Inspection

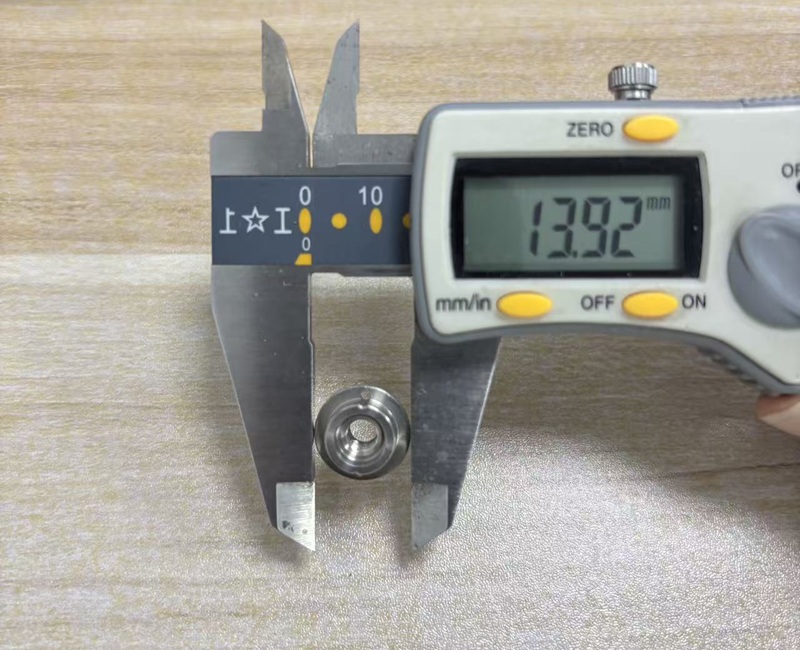

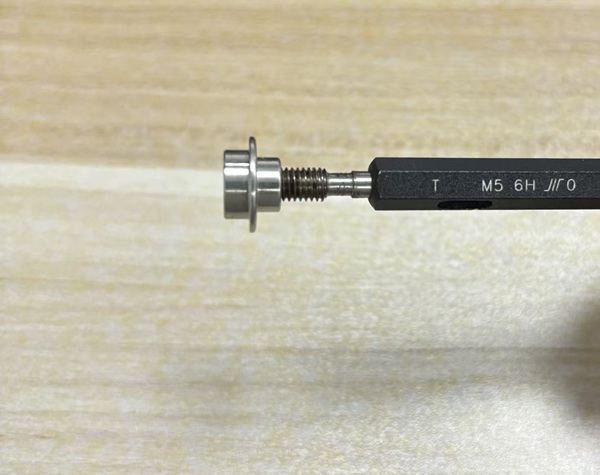

The adapters have been inspected carefully before shipment.  We inspect the weight, dimension, and surface.

Here are the pictures of the inspection:

Packing

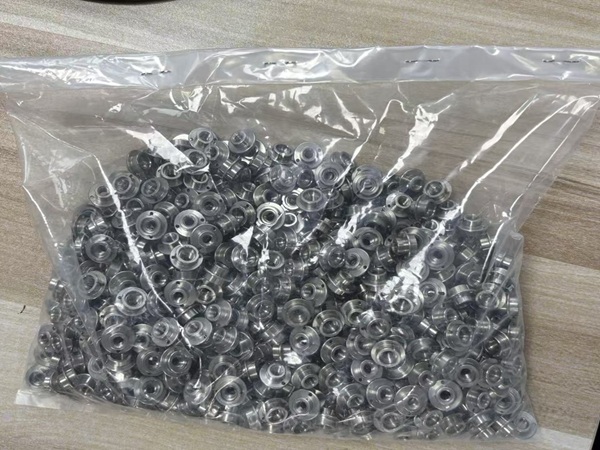

The stainless steel adapters are packed in bulk and sent by express.

Conclusion

The customer is satisfied with these parts after they receiving them. Ningbo Joyo Metal Products boasts 14 years of professional experience in custom CNC machining metal components, specializing in one-stop customization services from part design optimization to finished product delivery. We excel at machining a wide range of metal materials including stainless steel, aluminum alloy and copper alloy, and are capable of organizing different parts into complete custom assemblies to meet diverse industrial needs.
