It is a product for pet care , we design it together with our customer.
Feature:

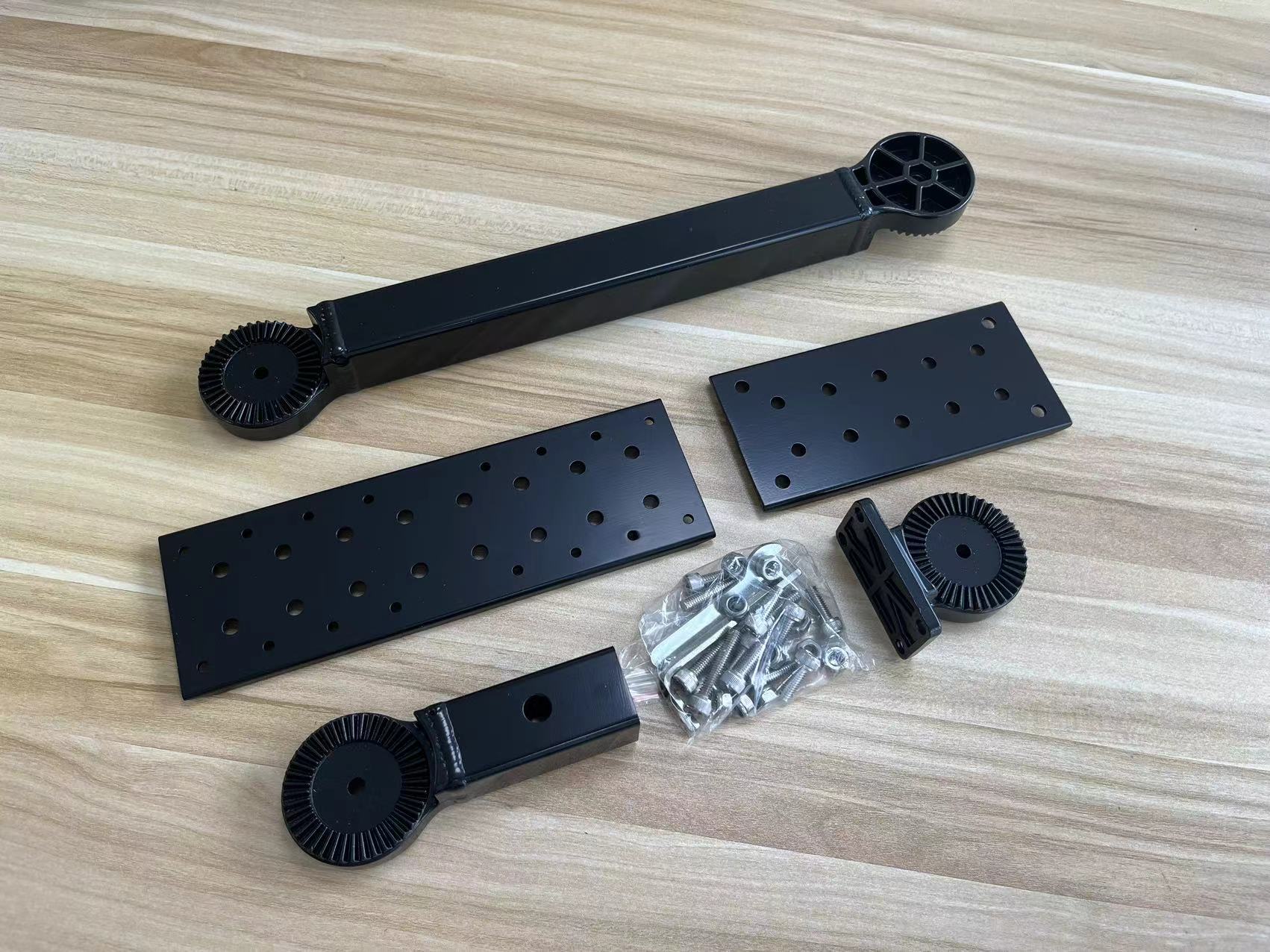

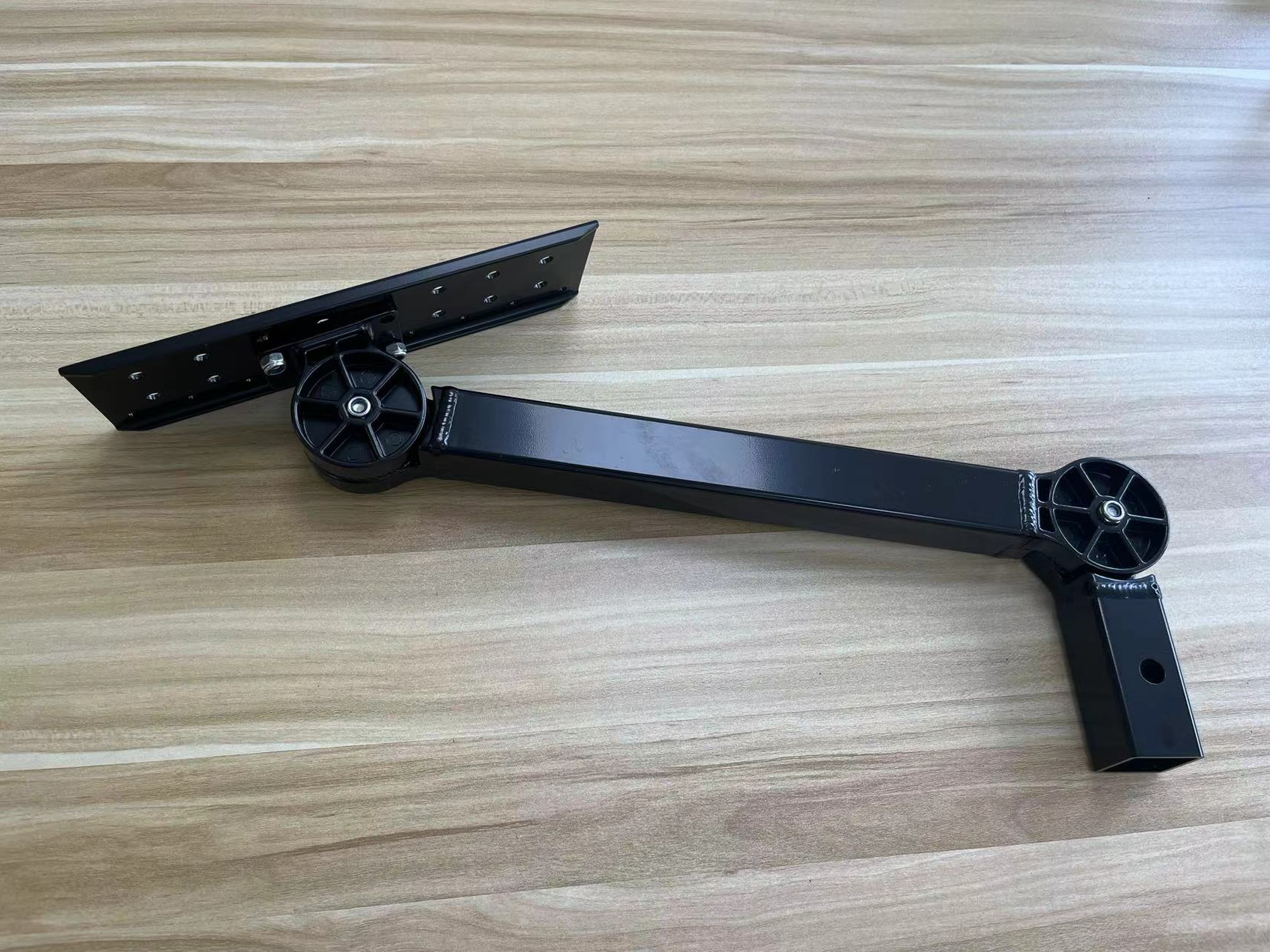

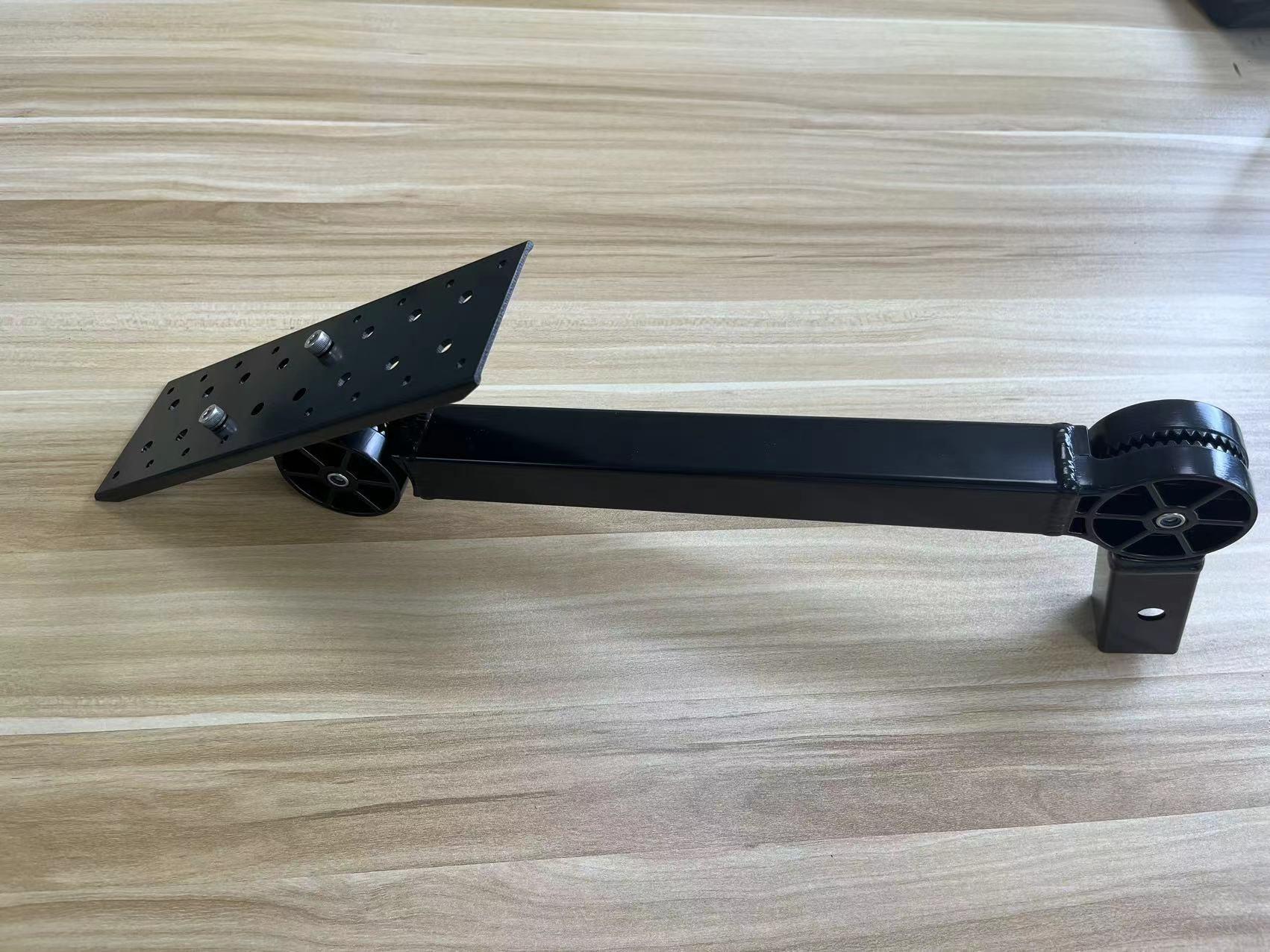

it is assembled by top plate ，square tube , wheels and hardware.
1, Top plate in 2pcs , one is long and another is short , to suit different pet seat.
Material : aluminum 6063-T5.
Process: it is extruded by tooling, then punch the holes and mill the chamfer.
2, square tube ,
Material : aluminum 6063-T5.
Process: it is extruded by tooling, then drill the holes.
3, wheels
material : ADC12.
process: it is die casting and then vibration .
4, tube and wheel welded together .
Surface: polished and electrophoresis

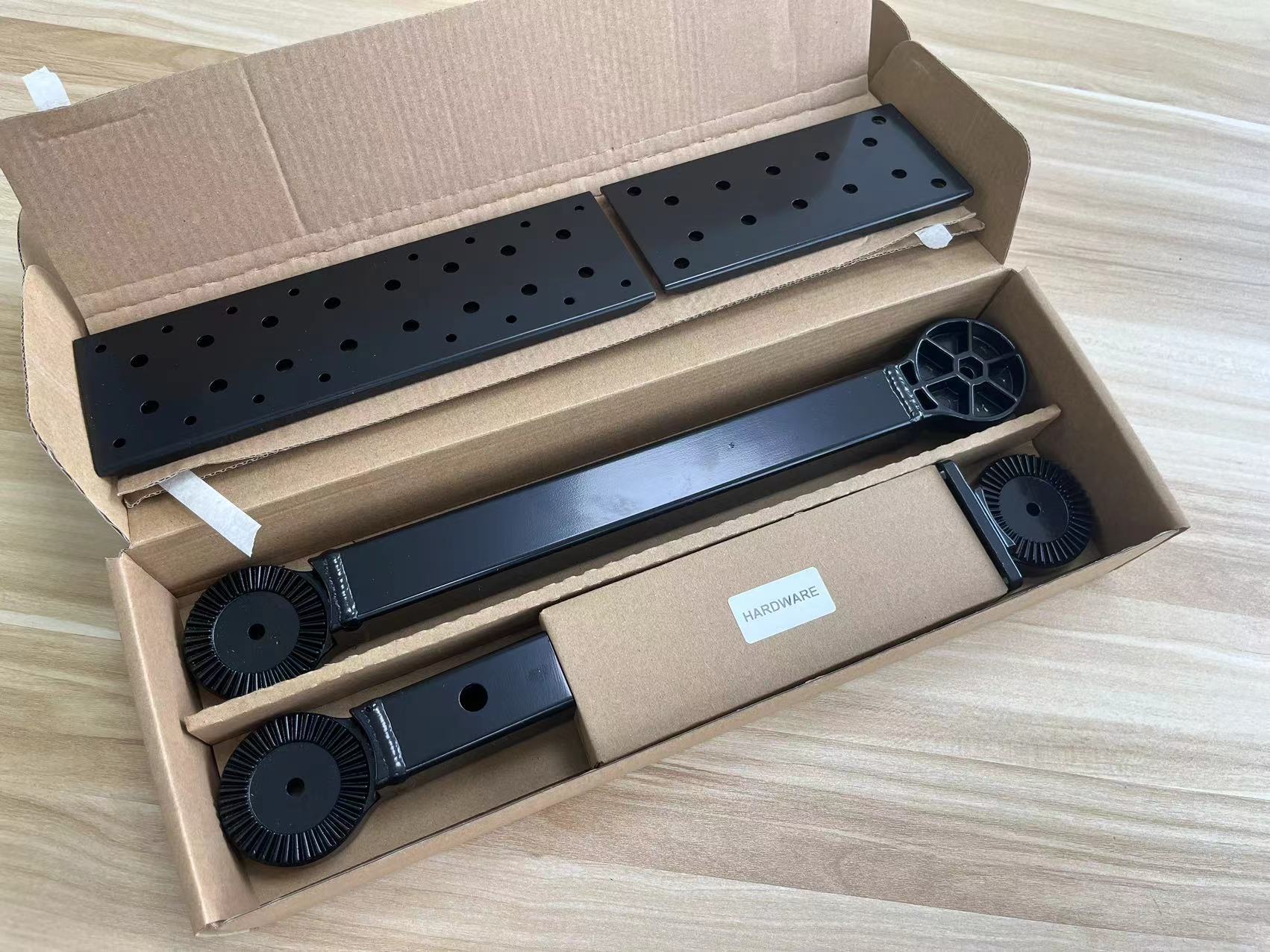

Packed in boxes , just as picture , with label and bar code.
