Can Investment Casting Molds Be Reused

Does an investment casting mold survive the molten metal pouring process? Many engineers and procurement teams ask this exact question when planning a new production run. The short answer is no. The ceramic shell mold used in this process is strictly single-use. It must be completely destroyed to extract the final metal part. However, the master tooling used to create the initial wax patterns is highly reusable. It can last for tens of thousands of cycles.

Understanding this fundamental difference between expendable molds and permanent tooling is absolutely critical. It directly influences accurate cost-per-part modeling. It also helps you choose the most efficient manufacturing process for your specific application. This guide breaks down the complete tooling lifecycle for precision casting operations. We will compare expendable mold processes with permanent mold techniques. Finally, we will provide a clear decision framework to help you optimize your next high-volume production run.

Key Takeaways

• Ceramic Shells are Expendable: The actual investment casting mold is broken away after the metal solidifies; it cannot be reused.

• Master Dies are Permanent: The aluminum or steel tooling used to inject the wax patterns can yield tens of thousands to hundreds of thousands of cycles.

• Complexity Outweighs Unit Cost: The destruction of the mold is what allows investment casting to achieve intricate internal cavities, severe undercuts, and zero parting lines.

• Process Selection Relies on Material & Volume: Reusable mold processes (like die casting) are generally limited to lower-melting-point alloys, whereas investment casting handles high-temperature steel and superalloys.

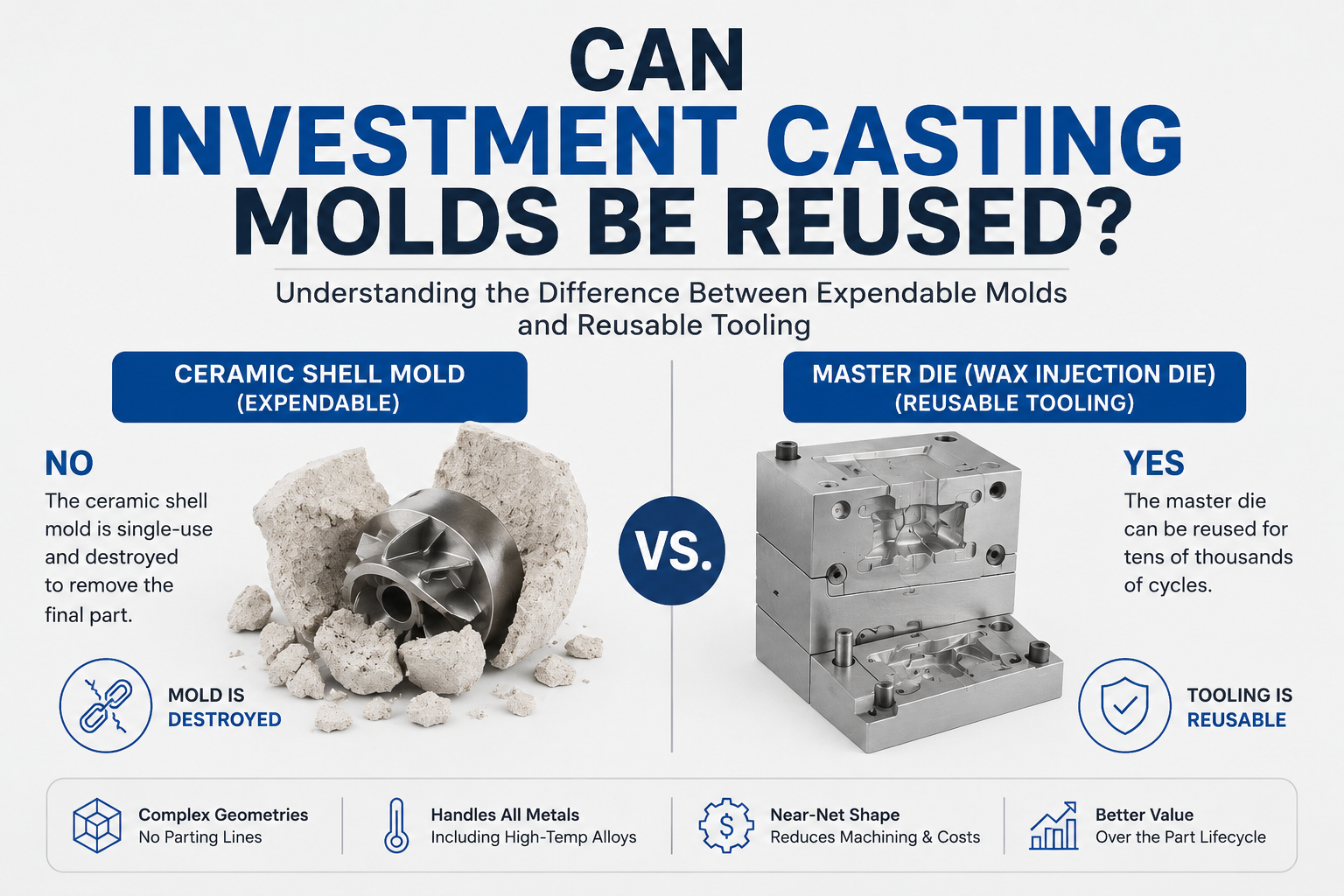

The Core Distinction: Expendable Molds vs. Reusable Tooling

To fully grasp the casting lifecycle, you must separate the tooling into two distinct categories. The first is the permanent master die. The second is the expendable ceramic shell. Blurring these two components often leads to confusion during the procurement process.

The Master Die

The entire process begins with the master die. Foundries typically machine this tool from high-grade aluminum. It serves a single purpose: injecting molten wax to create precise replicas of your final part. These wax replicas are called patterns. The master die itself never touches molten metal. It only handles wax at relatively low temperatures and pressures.

Because it operates under minimal thermal stress, a well-maintained aluminum master die boasts an impressive lifespan. You can typically expect 50,000 to over 100,000 wax injections before the tool requires significant refurbishment. You amortize this initial tooling cost across your total production volume. Over a long run, the tooling cost per part becomes virtually negligible. For highly abrasive waxes or extreme volumes, engineers might cut the die from steel to extend its life even further.

The Ceramic Shell

Once you have the wax patterns, you attach them to a central wax sprue. This creates a "tree." Operators then repeatedly dip this tree into a liquid ceramic slurry. They coat the wet slurry with fine sand called stucco. This process is known as investing. After applying multiple layers and allowing them to dry, a robust ceramic shell forms around the wax.

Foundries melt the wax out of the shell inside an autoclave. They then fire the empty ceramic shell in a high-temperature kiln. This firing creates a seamless, solid ceramic block. You pour molten metal directly into this fired shell. Once the metal solidifies, the physical reality of the process becomes clear. The shell is a solid monolith trapping the metal inside. Operators must shatter this ceramic shell using vibration, water jets, or mechanical knockout machines to retrieve the cast metal. It is entirely expendable.

The Wax Reusability Factor

Since the ceramic mold is destroyed, many people wonder about the wax. Can you save and reuse it? Foundries do reclaim the wax melted out during the autoclave phase. However, this reclaimed wax undergoes thermal degradation. It loses crucial dimensional stability. Virgin wax is strictly required for the precision part patterns to ensure tight tolerances. Foundries filter the reclaimed wax and reuse it primarily for the gating systems, such as the sprues and runners. This sustainable practice reduces material waste without compromising the final part quality.

Why the Ceramic Shell Cannot Be Saved

Watching a perfectly engineered ceramic mold shatter into pieces might seem wasteful. However, this destruction is a calculated engineering necessity. It provides distinct structural advantages that reusable molds simply cannot match.

The Physics of the Breakout Process

When you pour molten metal into a mold, complex thermal dynamics occur. Carbon steel, for example, pours at nearly 3000°F (1600°C). As the liquid metal fills the cavity and begins to cool, it undergoes natural volumetric shrinkage. The fired ceramic shell surrounding the metal is incredibly rigid. If the shell does not yield or crack as the metal shrinks, the internal stresses will tear the cooling metal apart. The shell must break away to accommodate the contracting alloy.

Some engineers ask why we cannot design a multi-piece, reusable ceramic shell. Attempting to engineer a split ceramic mold would instantly compromise dimensional accuracy. The high-heat pours would warp the mating surfaces. Metal would leak through the seams, causing severe flashing. A seamless, single-use shell guarantees an uninterrupted surface and strict dimensional control.

Engineering Benefits of an Expendable Mold

The single-use nature of the shell unlocks unprecedented design freedom. It eliminates the strict geometric limitations imposed by permanent molds.

1. No Parting Lines: Permanent molds must open to release the part. This opening creates a seam, or parting line, on the final casting. Because our ceramic shell is seamless and built around a melting wax pattern, parting lines do not exist. This eliminates the need for draft angles. It drastically reduces costly secondary machining operations.

2. Complex Geometries: A reusable steel mold cannot navigate severe undercuts or winding internal channels. It would physically trap the metal part. An expendable shell easily forms around intricate blind holes and thin walls. You simply break the shell out of those cavities later.

3. Superior Surface Finish: The fine colloidal silica used in the first layer of the ceramic shell captures microscopic details. Parts emerge from the shattered mold with a surface finish of 125 RMS or better. This quality far surpasses sand casting and matches or beats many permanent mold processes.

Investment Casting vs. Permanent Mold Casting: Evaluating the Trade-offs

Selecting the right casting method requires analyzing your specific project requirements. You must weigh the benefits of expendable molds against reusable mold processes.

Permanent Mold and Die Casting (Reusable Molds)

Permanent mold casting and die casting rely on reusable steel dies to shape the metal. You inject or pour molten metal directly into the metal tool, open it, and eject the part.

• Strengths: These processes deliver a much lower cost-per-part at extremely high production volumes. Cycle times are incredibly fast. A die casting machine can produce hundreds of parts per hour.

• Limitations: Reusable molds are strictly limited to non-ferrous, lower-melting-point metals. You can cast aluminum, zinc, and magnesium. You cannot cast high-temperature steel. The molten steel would simply melt or weld to the steel mold. Furthermore, you cannot cast complex internal geometries without purchasing expensive, consumable sand cores.

Investment Casting (Expendable Molds)

This process relies on the expendable ceramic shell we detailed earlier.

• Strengths: It is entirely material agnostic. It is the ideal choice for high-temperature alloys, including carbon steel, stainless steel, titanium, and Inconel. It achieves near-net shape precision, capturing complex details that permanent molds cannot physically produce.

• Limitations: It carries higher per-unit labor and material costs. Building the ceramic shell layer by layer takes days. Destroying the shell requires manual or automated labor. This makes the unit price higher than a die-cast equivalent.

Cost-to-Volume Intersection

To help visualize the selection process, we must look at the overall lifecycle costs. The table below outlines how different factors influence your choice.

Managing Costs and Maximizing Tooling ROI

While the ceramic mold is a single-use consumable, you can optimize the rest of the process to ensure maximum return on investment. Smart engineering and procurement practices keep overall production costs manageable.

Prototyping Without Hard Tooling

If you need a small batch of parts, investing in an aluminum master die might not make financial sense. For low-volume runs of 1 to 50 units, foundries offer alternative prototyping methods. We can use 3D printed wax or PMMA patterns. You bypass the aluminum tooling cost entirely. We attach these printed patterns to a sprue and build the expendable ceramic shell as usual. This allows you to test the exact alloy and physical properties of the final cast part before committing to permanent tooling.

Tooling Maintenance and Lifespan

When you do invest in an aluminum master die, proper maintenance dictates its lifespan. Working with a certified foundry ensures routine inspections of the tool. Over thousands of clamping cycles, the mating surfaces of an aluminum die can experience minor wear. Foundries routinely clean, lubricate, and refurbish these dies. This preventative maintenance stops wax flash from forming. It prevents dimensional drift, ensuring part number 50,000 is just as accurate as part number one.

Consolidating Assemblies

The strongest financial justification for choosing an expendable mold process is assembly consolidation. Look at your current manufacturing line. Are you welding three separate stamped brackets together to form one component? You can redesign that multi-part welded assembly into a single cast component. By doing so, you eliminate downstream welding labor, assembly fixtures, and multiple inspection points. The massive savings in secondary labor easily offset the price of the single-use ceramic mold.

Decision Framework: Is Investment Casting the Right Fit for Your Project?

Choosing a manufacturing route requires a clear evaluation of your mechanical needs and business goals. Use the following framework to determine if an expendable mold process suits your next project.

Checklist for Evaluation

• Material Requirement: Does the part require high-strength steel, stainless steel, or high-temperature superalloys? If yes, permanent mold casting is automatically disqualified. You must use an expendable mold process.

• Complexity Level: Does the design feature severe undercuts? Does it have complex internal cooling channels? Does it require strict dimensional tolerances like ± 0.005 inches per inch? If yes, the single-use ceramic shell is the only way to achieve these features without excessive machining.

• Post-Processing Budget: Will the near-net shape capability eliminate expensive secondary CNC machining operations? If avoiding machine time is a priority, the upfront investment in a master die pays off rapidly.

Next Steps for Procurement Teams

If your project aligns with these criteria, proper preparation will secure the most accurate quotes. Procurement teams must define their requirements clearly. Provide your foundry with complete 3D CAD models. Clearly state your material specifications and physical testing requirements. Finally, provide an accurate Estimated Annual Usage (EAU). The EAU allows the foundry to accurately separate the amortized tooling cost from the individual unit cost.

If you need engineering guidance on your specific application, you can always contact us to review your CAD files and project specifications.

Conclusion

It is crucial to separate the mold from the master tool when planning your production. The investment casting mold itself is a one-and-done consumable. It shatters to release the final part. However, the underlying master tooling is a durable, long-term asset capable of producing massive volumes.

This manufacturing process trades an expendable ceramic mold for unparalleled design freedom and incredible material versatility. You eliminate parting lines, hit tight tolerances, and cast high-temperature alloys that destroy reusable molds. Evaluate your design complexity and material needs carefully. If your parts demand intricate details and robust steel alloys, this method offers an unmatched overall lifecycle value. Submit your CAD files to a trusted foundry today to start evaluating your tooling options.

FAQ

Q: Can you reuse the wax in investment casting?

A: Yes, but typically only for the gating system. When foundries melt wax out of the ceramic shell, they filter and reclaim it. However, this reclaimed wax loses some dimensional stability and experiences slight shrinkage. It becomes unsuitable for the high-precision patterns of your actual parts. Foundries use virgin wax for the parts and reclaimed wax for runners and sprues.

Q: How long does an investment casting master die last?

A: Because foundries inject wax at relatively low pressures and temperatures, the master die experiences minimal wear. An aluminum master die can easily last for 50,000 to 100,000 cycles before requiring refurbishment. The exact lifespan depends on part complexity and the abrasive qualities of the specific wax used.

Q: Why is it called "investment" casting if you destroy the mold?

A: The term refers to the historical definition of the word "invest," which means to clothe or surround. In this process, the wax pattern is "invested" or completely surrounded by the liquid ceramic refractory material. It has nothing to do with financial investments.

Q: Can sand casting molds be reused?

A: No, the actual sand mold is broken apart to remove the final metal casting, much like a ceramic shell. However, the sand material itself is highly sustainable. Foundries frequently reclaim, sift, recondition, and reuse the same sand to form brand new molds for future pours.
