Investment casting, also known as precision casting or lost wax casting, is a manufacturing process that has stood the test of time. This intricate method allows for the creation of complex metal components with unparalleled accuracy and surface finish. In an era where precision and efficiency are paramount, understanding the nuances of investment casting is essential for industries ranging from aerospace to medical devices. By exploring the manufacturing of investment casting, we delve into a process that marries ancient techniques with modern technology, offering solutions that meet the exacting standards of today's engineering challenges. For those seeking comprehensive insights into this sophisticated process, examining the steps, materials, and advancements in investment casting reveals its significant role in modern manufacturing.
The roots of investment casting trace back over 5,000 years to ancient civilizations where artisans employed primitive methods to create jewelry, idols, and art. Early techniques involved beeswax patterns, clay molds, and manual metal pouring. While the fundamentals remain consistent, modern investment casting has evolved significantly. Today's processes utilize advanced materials and technologies, resulting in higher precision, repeatability, and scalability. The evolution from hand-crafted molds to automated production lines demonstrates the adaptability and enduring relevance of investment casting in manufacturing.
The manufacturing journey begins with the creation of a wax pattern, an exact replica of the desired final product. These patterns are typically produced using injection molding, where molten wax is injected into a metal die. The selection of wax is crucial; it must possess properties that allow for precise molding and easy removal without damaging the pattern. Sophisticated computer-aided design (CAD) software aids in crafting intricate designs, ensuring high fidelity between the pattern and the final cast component.
Individual wax patterns are assembled onto a central wax sprue, forming what is known as a tree. This assembly allows multiple components to be cast simultaneously, enhancing efficiency and reducing material waste. The wax tree must be carefully constructed to facilitate uniform metal flow and solidification during the casting process, minimizing defects and ensuring consistency across all parts.
The wax assembly undergoes a shell-building process, where it is repeatedly dipped into ceramic slurry and coated with fine sand or stucco. Each layer is allowed to dry before applying the next, gradually building up a durable ceramic shell capable of withstanding the high temperatures of molten metal. The number of layers depends on the size and complexity of the casting, typically ranging from six to ten layers. The meticulous application of each layer is vital for achieving the necessary thickness and strength of the mold.
Once the ceramic shell has fully cured, the wax is removed through a process called dewaxing. The assembly is placed in an autoclave or flash-fired in a furnace, causing the wax to melt and drain away, leaving behind a hollow ceramic mold. This step requires precision control of temperature and heating rates to prevent cracking or distortion of the shell. The recovered wax can often be recycled, contributing to the sustainability of the process.

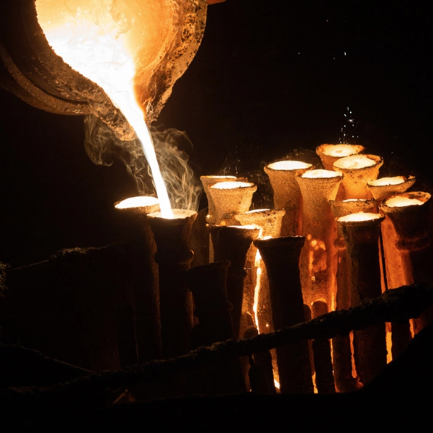

The hollow ceramic mold is preheated to a specific temperature to minimize thermal shock and facilitate optimal metal flow. Molten metal is then poured into the mold, filling the cavities left by the wax patterns. Common materials used in investment casting manufacturers include steel, aluminum, bronze, and various superalloys. The choice of metal depends on the application requirements, such as mechanical properties, corrosion resistance, and weight considerations.
After casting, the metal-filled mold is allowed to cool and solidify under controlled conditions. The rate of cooling can significantly affect the microstructure and mechanical properties of the final component. Controlled cooling techniques, such as furnace cooling or quenching, are employed to achieve the desired material characteristics. This phase is critical for ensuring dimensional accuracy and preventing defects such as shrinkage cavities or internal stresses.
Once the metal has solidified, the ceramic shell is broken away using mechanical vibration, high-pressure water jets, or chemical methods. Careful removal is essential to avoid damaging the cast components. The use of advanced techniques ensures efficient shell removal while preserving the integrity of intricate features and fine surface details inherent in precision casting.
The individual cast components are cut from the central sprue using cutting tools or automated machinery. Subsequent finishing processes, such as grinding, blasting, machining, or heat treatment, are applied to meet exact specifications and surface finish requirements. Non-destructive testing methods, including X-ray inspection and dye penetrant testing, may be employed to detect internal or surface defects, ensuring the highest quality standards.
Investment casting is versatile in terms of materials, accommodating a wide range of metals and alloys. The selection depends on the desired mechanical properties, application environment, and economic considerations. Common materials include:
Stainless Steels: For corrosion resistance and strength.
Carbon Steels: Offering a balance of strength and cost-effectiveness.
Aluminum Alloys: Valued for their lightweight and good mechanical properties.
Superalloys (e.g., Inconel, Hastelloy): Used in high-temperature applications.
Copper Alloys: For electrical conductivity and thermal properties.
Advancements in material science continually expand the capabilities of investment casting, allowing for the production of parts with enhanced performance characteristics tailored to specific industry needs.
The investment casting process offers numerous advantages that make it a preferred method for producing complex metal components:
Design Flexibility: Ability to cast intricate shapes with tight tolerances and fine details.
Excellent Surface Finish: Minimizes the need for additional machining or finishing processes.
Material Versatility: Suitable for a wide range of metals and high-performance alloys.
Reduced Material Waste: Near-net-shape casting reduces excess material, saving costs.
Consistency and Repeatability: Ideal for producing multiple identical components with high precision.
Cost-Effective for Complex Parts: Eliminates the need for assembly by casting complex geometries as single pieces.
Investment casting finds applications in numerous industries due to its precision and adaptability:
Aerospace: Turbine blades, structural components, and engine parts requiring high performance.
Automotive: Engine components, transmission parts, and specialty hardware.
Medical Devices: Surgical instruments and implants with stringent biocompatibility requirements.
Industrial Machinery: Pump components, valves, and fittings for various mechanical systems.
Defense: Weapon components, ammunition, and support hardware demanding reliability.
Art and Jewelry: Custom pieces requiring detailed craftsmanship and aesthetic appeal.
The broad applicability underscores the importance of investment casting in producing components that meet unique performance and design criteria.
Modern investment casting has embraced technological innovations that enhance efficiency, accuracy, and capabilities:
The integration of automation and robotics streamlines the production process. Automated wax injection, robotic shell building, and precision pouring systems reduce human error, increase production rates, and improve safety. These technologies enable manufacturers to meet the high demands of industries that require large volumes of precision components.
Additive manufacturing technologies, such as 3D printing, revolutionize pattern creation. Direct printing of wax or plastic patterns from CAD models eliminates the need for expensive tooling, reducing lead times and costs, especially for prototypes or low-volume production. This flexibility allows for rapid design iterations and customization.
Computational tools simulate the casting process, predicting metal flow, solidification, and potential defects. These simulations inform design adjustments before production, enhancing yield, and minimizing trial-and-error. Manufacturers utilize these insights to optimize mold designs, gating systems, and process parameters.
Maintaining rigorous quality control is imperative in investment casting, especially for components used in critical applications. Manufacturers adhere to international standards such as ASTM, ISO, and SAE specifications. Quality assurance involves:
Material Certification: Verifying the chemical and mechanical properties of metals.
Dimensional Inspection: Using coordinate measuring machines (CMM) for precise measurements.
Non-Destructive Testing: Applying ultrasonic, radiographic, and magnetic particle inspection.
Process Control: Monitoring and documenting each production stage to ensure consistency.
These practices ensure that the final products meet or exceed customer expectations and comply with regulatory requirements.
Investment casting is not only valued for its technical advantages but also for its environmental and economic benefits:
The process produces near-net-shape components, minimizing machining and reducing material waste. Recycled materials, such as reclaimed wax and scrap metal, can be reused, contributing to sustainability and cost savings.
Efficient furnace designs and process optimizations reduce energy consumption. Innovations in shell materials and heating methods further enhance energy efficiency, aligning with environmental regulations and reducing operational costs.
Investment casting's ability to produce complex parts in a single step reduces labor and assembly costs. For high-value components requiring precise specifications, the initial investment in tooling and setup is offset by the long-term benefits of quality and consistency.
Despite its advantages, investment casting faces challenges such as competition from alternative manufacturing methods like metal injection molding (MIM) and advances in additive manufacturing. Addressing these challenges involves:
Continuous Innovation: Investing in research and development to improve materials, processes, and technologies.
Skilled Workforce: Training and retaining skilled technicians and engineers to maintain high-quality standards.
Cost Management: Optimizing production to remain competitive in a global market.
The future of investment casting is promising, with opportunities arising from emerging industries such as renewable energy, electric vehicles, and aerospace exploration. These sectors demand precision components that investment casting is well-suited to provide.
Investment casting remains a cornerstone of modern manufacturing, delivering components that meet stringent specifications and complex design requirements. The process's adaptability, coupled with technological advancements, ensures its continued relevance and growth. By understanding the manufacturing of investment casting, engineers and manufacturers can harness its full potential, contributing to innovation and efficiency in various industries. Partnering with experts in precision casting unlocks opportunities to achieve superior product performance and quality.
Investment casting accommodates a wide range of ferrous and non-ferrous metals, including stainless steel, carbon steel, aluminum alloys, superalloys, and copper alloys. The choice depends on the required mechanical properties and application needs.
Investment casting offers superior dimensional accuracy and surface finish compared to sand casting or die casting. It's ideal for complex geometries and fine details but may have higher initial tooling costs. The method is chosen based on the specific requirements of the component.
Investment casting is versatile in size, capable of producing very small components weighing just a few grams to larger parts weighing up to several dozen kilograms. However, extremely large parts may be more practical to produce using alternative casting methods.
Yes, investment casting is known for its ability to achieve tight tolerances, often within ±0.1% of the nominal dimensions. This precision reduces or eliminates the need for additional machining, saving time and costs.
Investment casting is suitable for both low and high-volume production. While the initial tooling costs can be higher, the ability to cast multiple components simultaneously and the reduction in machining can make it economically viable for large production runs.
Investment casting typically results in excellent surface finishes, with roughness values around 125 microinches (3.2 micrometers) or better. This smoothness often eliminates the need for additional finishing processes.
Automation enhances the efficiency, consistency, and safety of investment casting. Automated systems handle tasks such as wax injection, shell building, metal pouring, and finishing. This technology reduces labor costs and improves product quality by minimizing human error.
