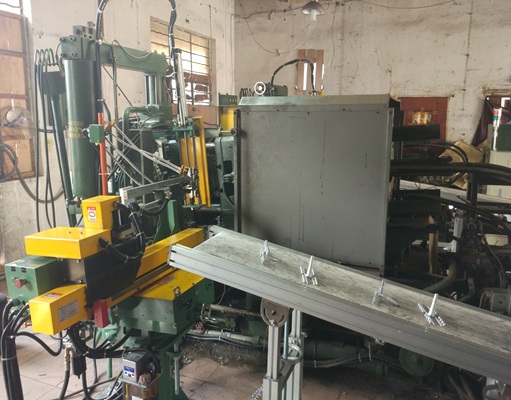

Die casting is a versatile and efficient manufacturing process for producing complex metal parts with high precision and repeatability. It involves injecting molten metal under high pressure into a steel mold called a die. Once the metal solidifies, the die is opened, and the cast part is ejected. This method is renowned for its ability to create intricate shapes with excellent dimensional accuracy and smooth surface finishes, making it indispensable in various industries such as automotive, aerospace, electronics, and consumer goods. Understanding the intricacies of die casting is crucial for engineers and manufacturers aiming to optimize production efficiency and product quality. The process has evolved significantly over the years, incorporating advanced materials and technologies to meet the growing demands of modern manufacturing.
The die casting process is grounded in fundamental principles of metallurgy and fluid mechanics. At its core, it relies on the rapid injection of molten metal into a precisely machined die cavity. The high-pressure injection ensures the molten metal fills even the most intricate features of the die, resulting in parts that require minimal machining or finishing. Key variables in the process include injection pressure, shot speed, die temperature, and cooling rate, all of which must be carefully controlled to prevent defects such as porosity, shrinkage, or cold shuts. The selection of appropriate process parameters is essential for achieving optimal mechanical properties and surface quality in the final die casting parts.
High-pressure die casting (HPDC) is the most common method used, particularly for non-ferrous metals like aluminum, magnesium, and zinc. In HPDC, molten metal is injected into the die at pressures ranging from 1,500 to over 30,000 psi. This high-pressure environment allows for rapid filling of the die cavity, which is essential for producing thin-walled components with complex geometries. The die materials are typically hardened tool steels capable of withstanding repeated thermal cycling and mechanical stress. HPDC is highly suited for mass production due to its short cycle times and excellent dimensional consistency.
Gravity die casting, also known as permanent mold casting, relies on gravity to fill the die cavity with molten metal. While it operates at lower pressures compared to HPDC, it is preferred for manufacturing parts that require superior mechanical properties and reduced porosity. The slower filling process allows gases to escape more readily, resulting in denser and stronger castings. Gravity die casting is often used for producing components with thicker sections and is suitable for materials like brass and some aluminum alloys.

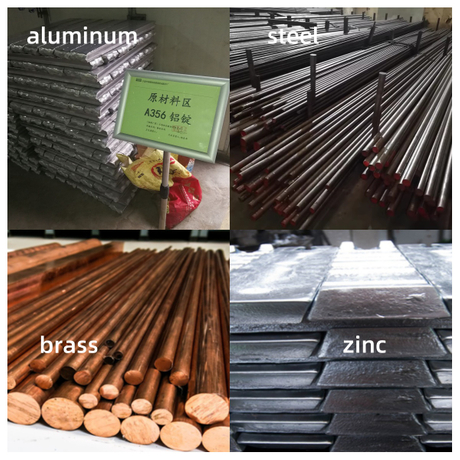

The choice of material in die casting significantly influences the mechanical properties, appearance, and performance of the final product. Commonly used materials include aluminum, zinc alloys (such as Zamak), brass, and magnesium alloys. Each material offers unique advantages that make it suitable for specific applications.
Aluminum is one of the most widely used materials in die casting due to its excellent strength-to-weight ratio, corrosion resistance, and thermal conductivity. Aluminum die casting is highly favored in the automotive and aerospace industries for components like engine blocks, transmission housings, and structural parts. The ability to produce lightweight yet sturdy components helps in improving fuel efficiency and reducing emissions in vehicles. Additionally, aluminum's recyclability adds an environmental advantage to its list of benefits.
Zamak is a family of zinc-aluminum alloys known for their excellent casting properties, dimensional stability, and surface finish. Zamak die casting is commonly used for producing intricate components in consumer electronics, automotive interiors, and hardware due to its ability to reproduce fine details and maintain tight tolerances. The low melting point of Zamak alloys reduces energy consumption during casting and extends die life by minimizing thermal shock.
Brass alloys offer superior corrosion resistance, electrical conductivity, and aesthetic appeal, making them ideal for applications in plumbing, electrical components, and decorative items. Brass die casting produces parts with a distinctive golden luster and excellent mechanical strength. The process requires careful control of casting parameters to manage brass's higher melting point and susceptibility to oxidation.
Magnesium is the lightest structural metal, offering a remarkable combination of lightness and strength. Magnesium alloy casting is increasingly popular in the automotive and electronics industries for components like steering wheels, seat frames, laptop casings, and mobile phone bodies. The use of magnesium alloys contributes to overall weight reduction, enhancing fuel efficiency and device portability. However, magnesium's high reactivity requires specialized melting and casting equipment to prevent oxidation and fire hazards.
Die casting parts are integral to a multitude of industries due to their precision, strength, and cost-effectiveness. In the automotive sector, die-cast components include engine blocks, transmission cases, brackets, and heat sinks. These parts must meet stringent specifications for durability and safety. The electronics industry leverages die casting for enclosures, housings, and connectors that require shielding against electromagnetic interference while providing structural integrity. In consumer goods, die casting enables the production of hardware, tools, and kitchen appliances with appealing finishes and ergonomic designs.
The medical device industry also benefits from die casting by obtaining parts that meet high cleanliness and precision standards. Moreover, die casting allows for consolidation of multiple parts into a single complex component, reducing assembly time and potential points of failure. The ability to produce large quantities of identical parts with minimal variation makes die casting an attractive option for high-volume manufacturing.
Die casting offers numerous advantages that make it a preferred manufacturing method for metal parts. These advantages include:
High Production Efficiency: The die casting process is highly automated and capable of producing thousands of parts with consistent quality in a relatively short period. The rapid cycling reduces lead times and increases throughput, making it ideal for mass production.
Complex Geometries: Die casting can produce parts with intricate shapes, thin walls, and fine details that are difficult or impossible to achieve with other manufacturing methods. This capability allows for greater design flexibility and integration of multiple functions into a single part.
Dimensional Accuracy and Stability: The precision of die casting dies ensures that parts are produced with tight tolerances and minimal dimensional variation. This accuracy reduces the need for secondary machining operations, saving time and cost.
Smooth Surface Finishes: Parts produced by die casting have excellent surface finishes, which can be enhanced with additional treatments like plating or powder coating. This attribute is particularly beneficial for aesthetic components where appearance is critical.
Material Conservation: The die casting process generates minimal scrap, and any excess material (such as overflows and sprues) can often be recycled. Efficient material usage contributes to cost savings and environmental sustainability.
Despite its advantages, die casting presents certain challenges that manufacturers must address to ensure product quality and process efficiency.
Porosity: The rapid cooling and solidification of molten metal can trap gases, leading to porosity within the casting. Porosity weakens the mechanical properties and can cause defects in surface finishing. Solutions include optimizing the venting system in the die, adjusting injection parameters, and employing vacuum-assisted casting techniques.
Die Wear: The repeated thermal cycling and mechanical stress can lead to die wear and damage over time, affecting the quality of the parts produced. Selecting appropriate die materials, applying surface treatments, and using proper cooling systems can extend die life. Regular maintenance and inspection are also crucial for early detection of wear.
Thermal Cracking: Differential cooling rates in different sections of the die can cause thermal stresses and cracking. Uniform die temperature management through controlled cooling channels and thermal simulations during the design phase can mitigate this issue.
Material Limitations: Not all metals are suitable for die casting due to factors like melting point, reactivity, and fluidity. Understanding the properties of materials like magnesium, aluminum, zinc, and brass is essential for selecting the appropriate die casting technique and equipment.
Environmental and Safety Concerns: Handling molten metals poses safety risks, and processes like magnesium alloy casting require special precautions due to flammability. Implementing strict safety protocols and investing in training for personnel are vital for accident prevention.
Die casting remains a cornerstone of modern manufacturing, enabling the mass production of high-quality metal parts with complex geometries and excellent mechanical properties. Advances in materials science and process technology continue to expand the capabilities and applications of die casting. By understanding the fundamental principles, materials involved, and challenges associated with the die casting process, manufacturers can optimize production and develop innovative solutions to meet the evolving demands of various industries. Companies like Ningbo Joyo Metal Products Co., Ltd. play a pivotal role in advancing die casting technology and providing specialized services in areas such as die casting, contributing significantly to the global supply chain of high-quality metal components.
