An Order of Stainless Steel Seam Rims Is Ready

Product overview

This is a product we've made many times.

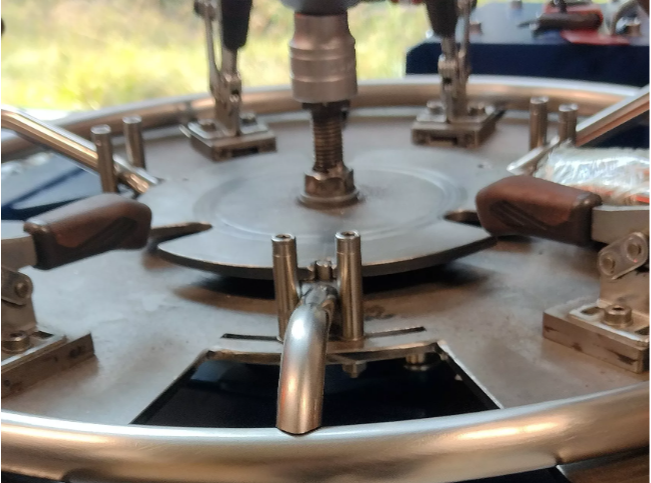

It is made of stainless steel tubing and used for wheelchair industry. Please find the below picture for its application:

Process introduction

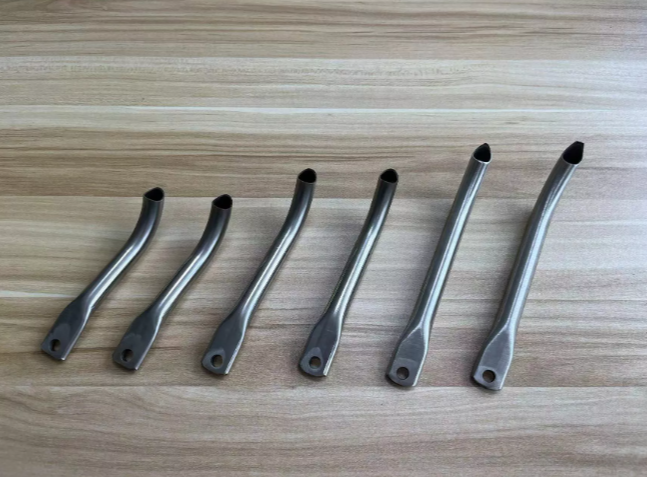

The rim is made by stainless steel seam tube. The outer tube is OD 20mm, formed into round and then welded, polished, so that the welding seam is not visible. The rim arm is worked by OD14 tube, it was punched in one end to flat, then punch the hole. Bend the tube to correct size, and cut a radius R10 in another end. Then welding the arms into outer round tube. Finally the whole item is sent to Electrolytic polishing to get a nice looking surface. Below are the finished parts:

Packing

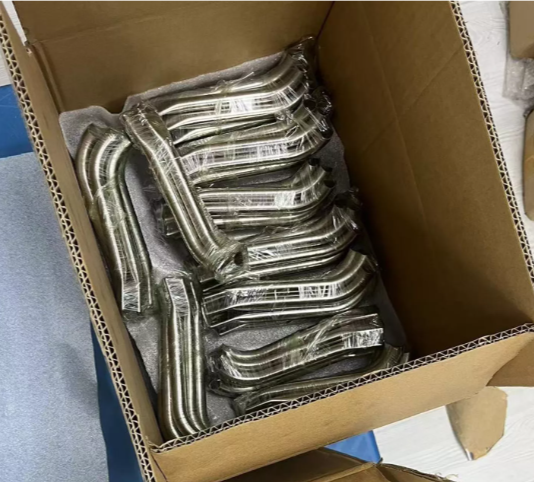

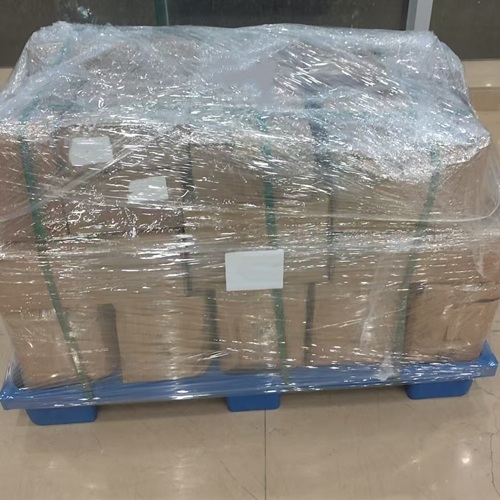

The rims are packed in a dozen at a time, tightly wrapping it with cling film, increasing friction to prevent bumps and scratches. Then put them into carton and laid on the pallet.
